Dimensions
- dimensions: 8200*2380*3250
- Wheelbase: 3475+1250
- Wheels: 315/80R22.5 18PR
- Weight (Curb Mass): 12000
Brief introduction
Introduction to Wuhan Junfeng Automobile Co., Ltd

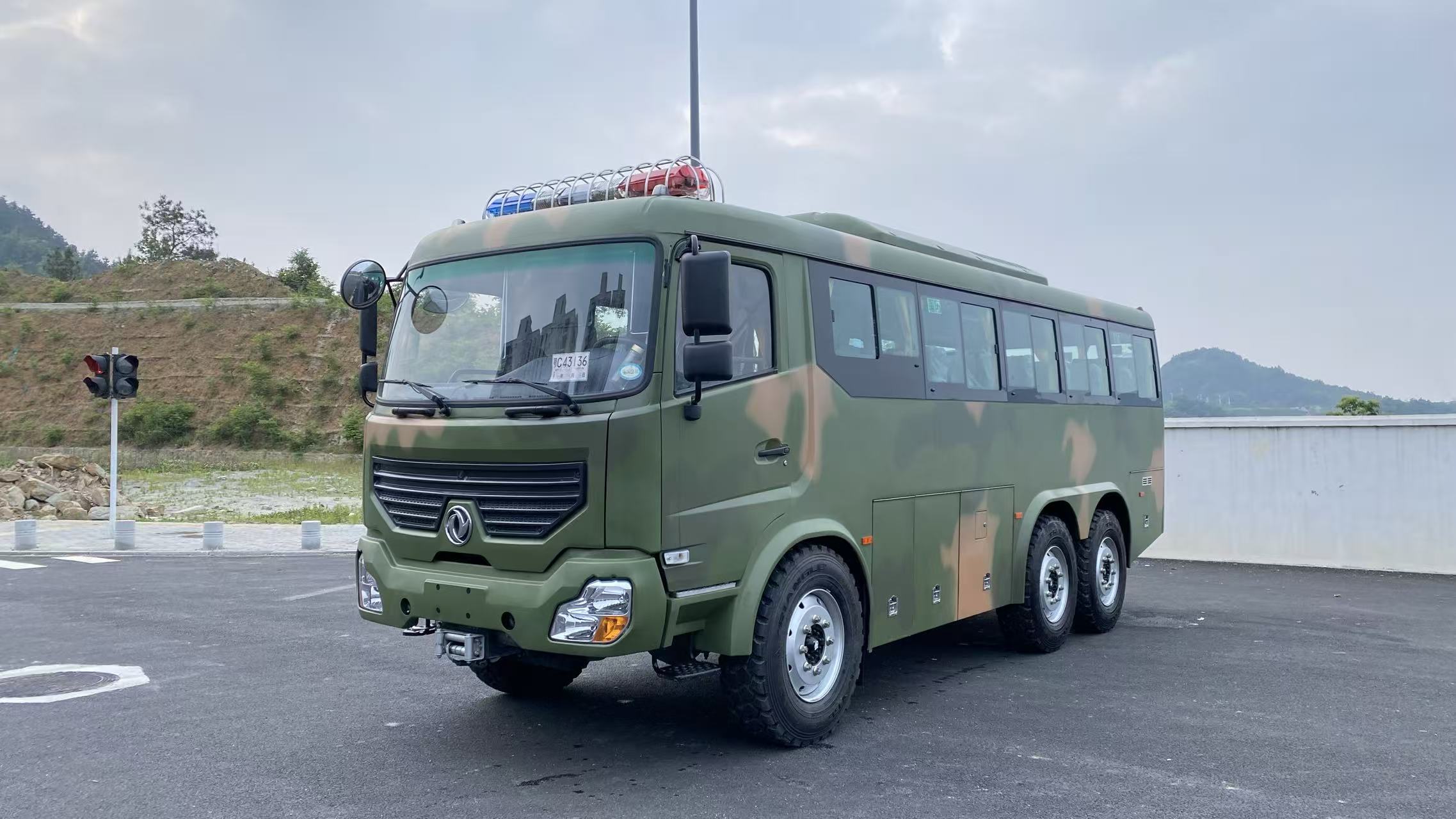

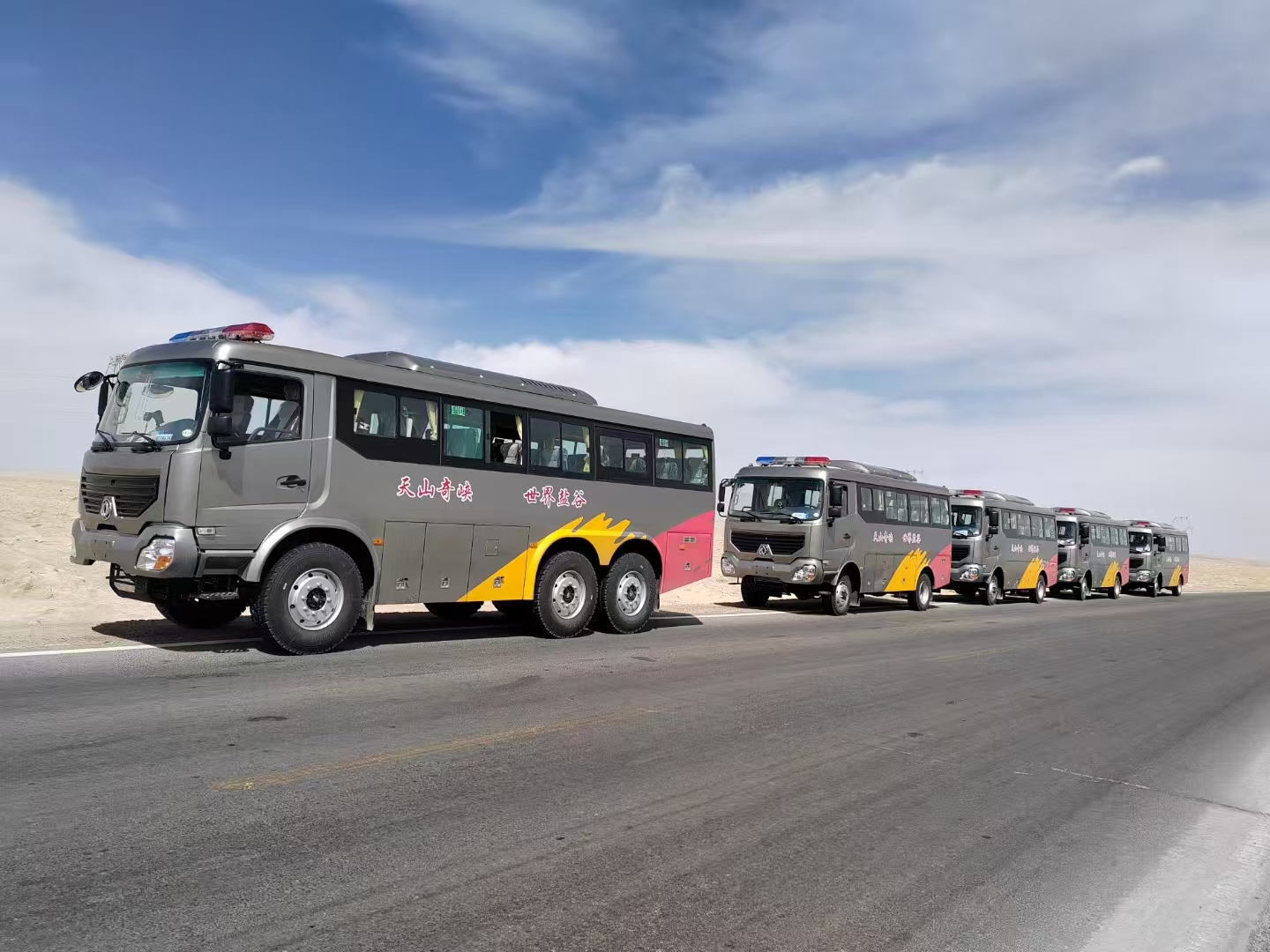

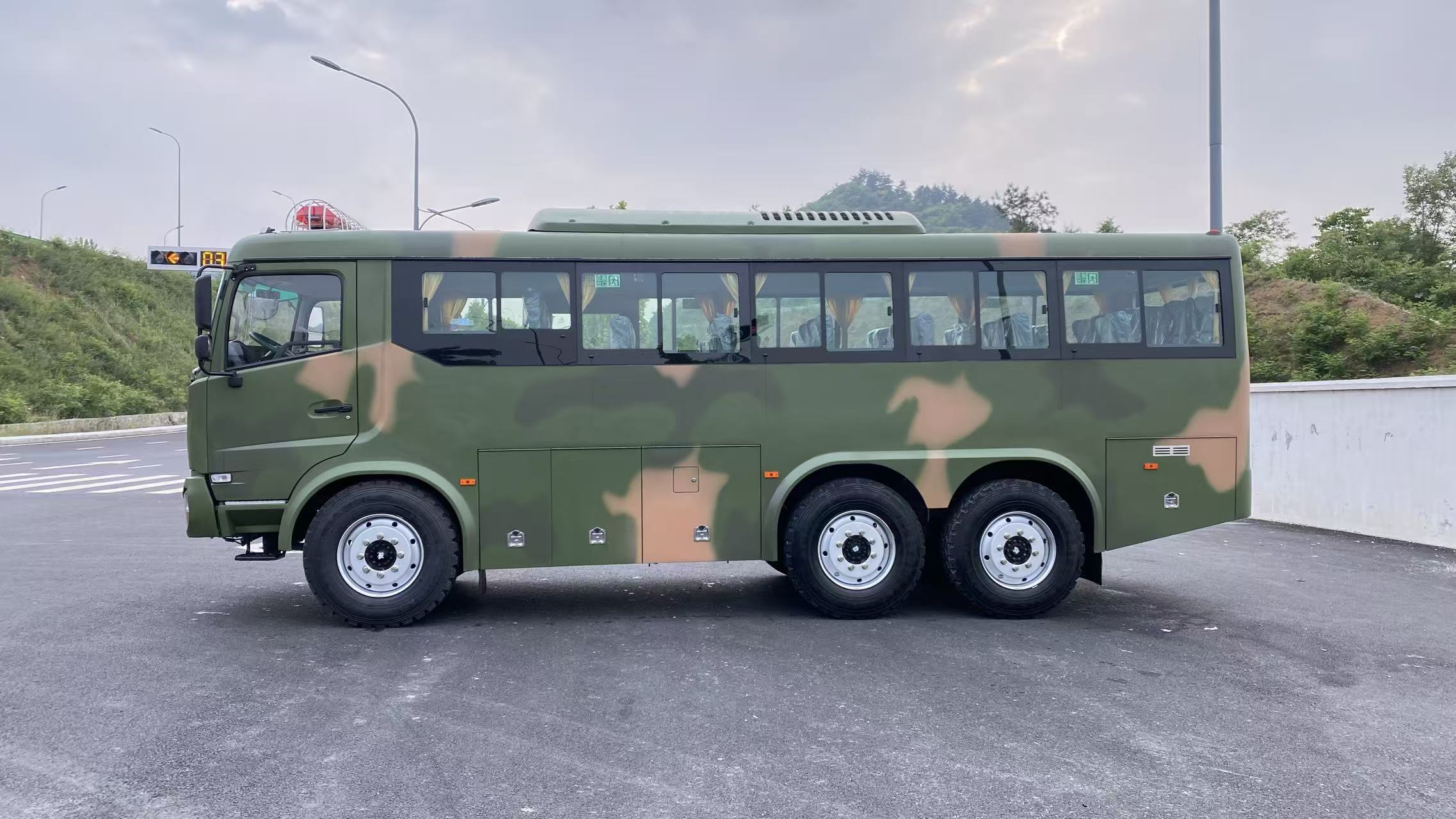

6*6 off-road BUS
JunFeng motor focused on vehicle development and core components for smart and new energy vehicles. Product development, innovative business models with the Internet + thinking way, explore new paths for the development of smart and new energy vehicles .
JunFeng motor focused on vehicle development and core components for smart and new energy vehicles. Product development, innovative business models with the Internet + thinking way, explore new paths for the development of smart and new energy vehicles .
World renowned brand with strong power
Strong off-road capability
multi-purpose vehicle
Comfortable driving experience
Colores
6*6 off-road BUS
Strong off-road capability:World renowned brand with strong power,Comfortable driving experience:multi-purpose vehicle,
6*6 off-road BUS Specs
Starting at: $
Drive
- Energy: diesel
- Range:
- Drive: 6X6 Time-sharing drive
- Transmission: Manual transmission
Power
- Battery type:
- Battery Factory:
- Charging:
- Battery capacity:
Cockpit
- Seat: 24-31
- Displays:
- luggage volume:
- Airbag: OK
Performance
- High Speed: 100
- Acceleration: 0
- Intelligent assisted driving:
- Air conditioning: OK
Warranty
- Basic Vehicle: Three years or 100000 kilometers
6*6 off-road BUS
1. The whole vehicle is equipped with an electrically controlled pneumatic control system and a part-time six wheel drive system. The front, middle, and rear drive axles are made of mass-produced components from Dongfeng military products. The minimum ground clearance of the vehicle is 300 millimeters, the maximum speed is 100 km/h, and the load capacity is 3 tons. This vehicle has unparalleled handling comfort, reliability, maneuverability, and load-bearing capacity compared to domestic 8-meter six wheel drive vehicles.
2. The entire vehicle body is developed based on the Dongfeng flagship medium truck "Tianjin" platform, and all the components installed in the cab are based on the Dongfeng "Tianjin" platform car. The quality and reliability of the components have advantages that traditional buses cannot compare with. The after-sales market has abundant resources of components, which can ensure efficient and convenient vehicle services and eliminate your worries about purchasing a car!
Dongfeng EQ6820ZT bus (Euro 5 standard)
您的浏览器不支持播放该文件
| 整 车参数 | long（mm） | 8200 | 发 动 机 参数 | engine type | ISD200-50 | ||
| wide（mm） | 2380 | ||||||
| high（mm） | 3250（Full-ceiling air conditioning system） | Engine Manufacturing Plant | Dongfeng Cummins Engine Co., Ltd. | ||||
| High inside the carriage（mm） | 1730 | Location/Fuel | Front diesel engine | ||||
| wheelbase（mm） | 3475+1250 | Engine Type | Four-cylinder inline configuration, four-stroke engine, water-cooled, turbocharged with intercooler, electronically controlled single-point injection system | ||||
| Front suspension/rear suspension（mm） | 1475/2000 | maximum power（kW/r/min） | 140/2500 | ||||
| Approach angle/departure angle（º） | 25/22 | Maximum Torque（N.m/r/min） | 760/1600 | ||||
| First level step height（mm） | 530(280 Expansion steps installed) | displacement(L) | 4.5 | ||||
| Maximum total mass（kg） | 12000 | emission standard | Euro 5 | ||||
| Rated number of passengers (person) （人） | 24-31 | Driving Method | LHD/RHD | ||||
| Maximum speed （km/h） | 100 | Information | |||||
| Minimum ground clearance （mm） | 300（6X6 Time-sharing drive） | ||||||
| Track width (front/rear) （mm） | 2050/2020/2020 | Vehicle Model Code | JF-EQ6820ZT | ||||
| project | standard layout | ||||||
| 底盘参数及配置 | Chassis model | EQ6790KZ6T DongFeng | |||||
| gearbox | DongFeng DT0690 | ||||||
| clutch | 395ｍｍSingle-piece, dry type, diaphragm spring, clutch assist | ||||||
| Maebashi | DongFeng Dela 3.3吨 | ||||||
| The middle axle bridge | DongFeng Dela 4.1吨 | ||||||
| rear axle | DongFeng Dela 4.1吨 | ||||||
| suspension | First 9, last 12 (balanced rear suspension) | ||||||
| steering | Right-hand drive mode, power steering | ||||||
| braking | Air brake, ABS, self-adjusting arms, wear alarm, exhaust brake | ||||||
| fuel tank | 250L | ||||||
| tire | 315/80R22.5 18PR | ||||||
| Battery/Generator | 6-QW-120MF ×2 / 28V 150A | ||||||
| other | Copper water tank, steering shock absorber, power take-off unit, electric winch (with 6X6 or 6X4 part-time drive), front combination crash barrier, and top-mounted air intake with a Grade 3 air filter. | ||||||
| 车身主要总成 | Body structure | Non-load-bearing | |||||
| interior | Formed and softened interior; right-hand drive steering system; instrument panel. | ||||||
| Car doors and door pumps | Main and auxiliary driver doors (electrically operated lift windows); manual rotating passenger doors with container-style double doors | ||||||
| side window | Full adhesive tape window within the window (F green) | ||||||
| windshield Rear | Front panel with adhesive backing; the remaining tempered glass panels. | ||||||
| view system | Steel-frame, asymmetric, manual lever-type rearview mirror | ||||||
| air conditioning system | Full-top single-unit air conditioner (Refrigeration capacity: 20 kW) (High-end model with all copper tubes) | ||||||
| warm air system | ------ | ||||||
| defroster | File-transfer defroster 24V,280W | ||||||
| audio-visual system | An MP3 player with a USB port and a 17-inch color display. | ||||||
| Satellite positioning system | Beidou Driving Recorder | ||||||
| lighting fixtures | Front and rear combination lamps | ||||||
| windshield wiper | Frontward-scraping electric wiper | ||||||
| hatch | Steel plate material for the side door | ||||||

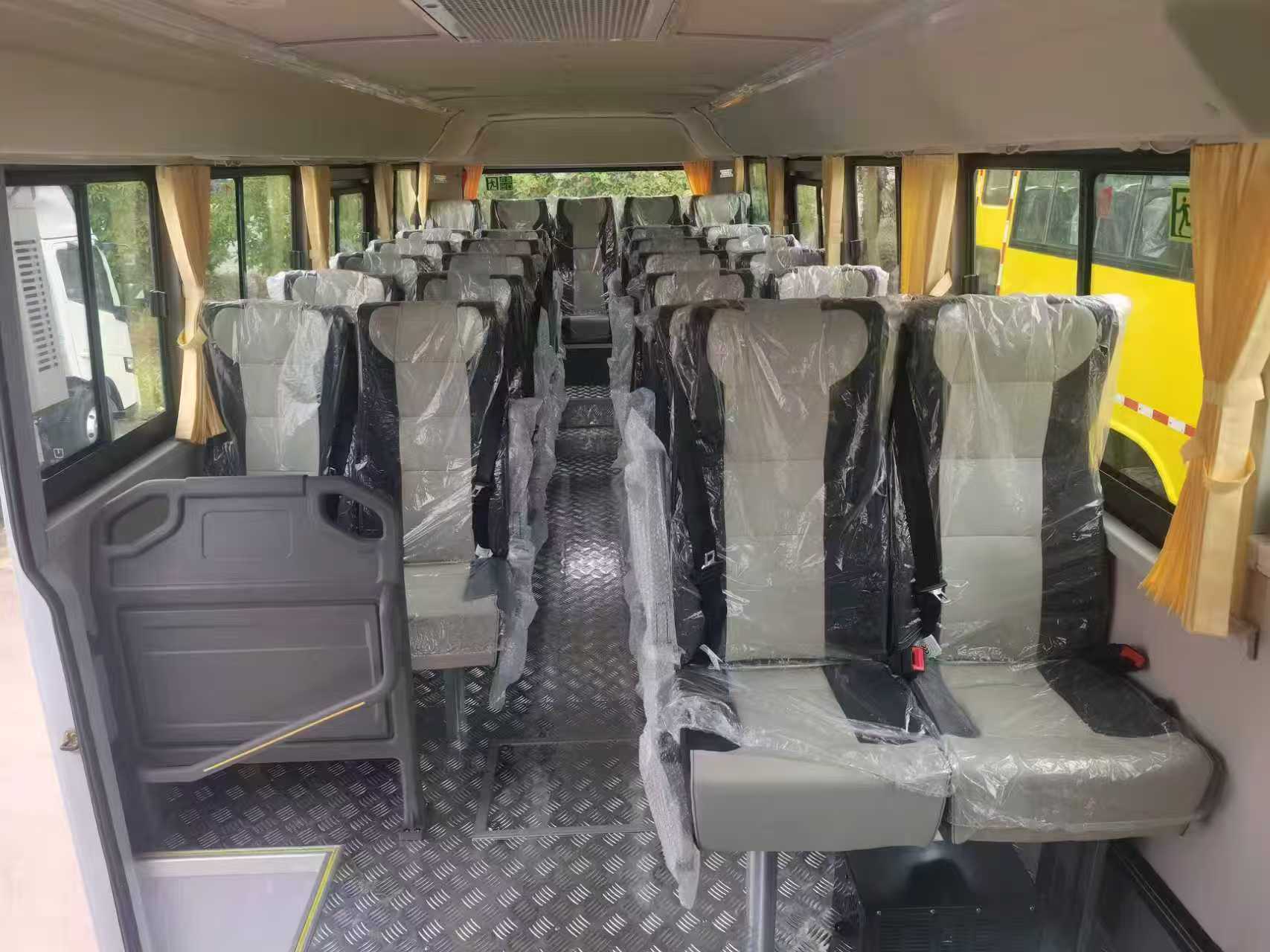

| seat | 31 seats in total; shock-absorbing driver's seat; adjustable backrest for the passenger seat (both forward and backward); standard fabric-faced seats; side seats along the aisle come equipped with armrests as standard. | ||||||
| paint | Solid paint/Metal paint (pattern customized according to order requirements) | ||||||
| Other | Color-coated leather flooring; 2 fire extinguishers (4 kg each); 5 safety hammers; an electronic clock; a DC816A horizontal standard sunroof; front windscreen equipped with dual half-width roller sunshades for driver and passenger; a driver's area fan; an air horn; three-point seat belts throughout the vehicle; a driver's seat belt alarm; mechanical power-off switches in the engine compartment and battery compartment; and an automatic manual fire suppression system. |
|
|||||
