JF-N06
Price:Contact Us cc_junfeng#163.com
Brand | Dongfeng Nammi |
Classification | Pure electric small SUV |
Body dimension (mm) | 4306*1868*1645 |
Wheelbase (mm) | 2715 |
Body structure | SUV |
Mileage (km) | 471km |
Type of battery | Lithium iron phosphate battery |
Motor Power(KW) | 0 |
Battery Capacity(KWh) | 45 |
Charging period | 0.5h |
Highest Driving Speed | 150 |
Acceleration Time(s) | 0 |
Driving motor locatio | Front |
Volume of trunk | |
Type of transmission | Electric vehicle single speed gearbox |
Curb weight | 1526kg |
Warranty of vehicle | |
Manufacturer | Dongfeng |

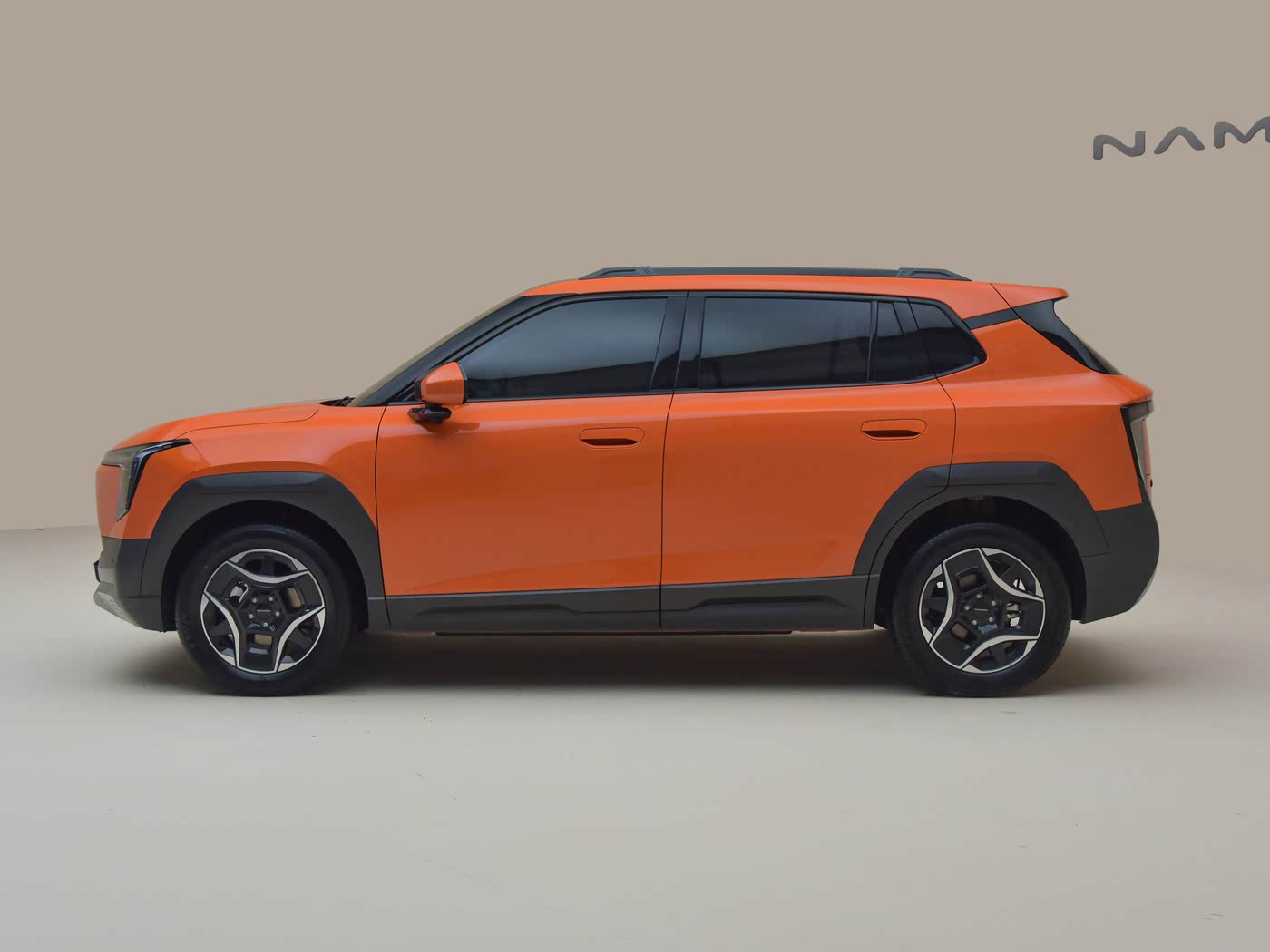

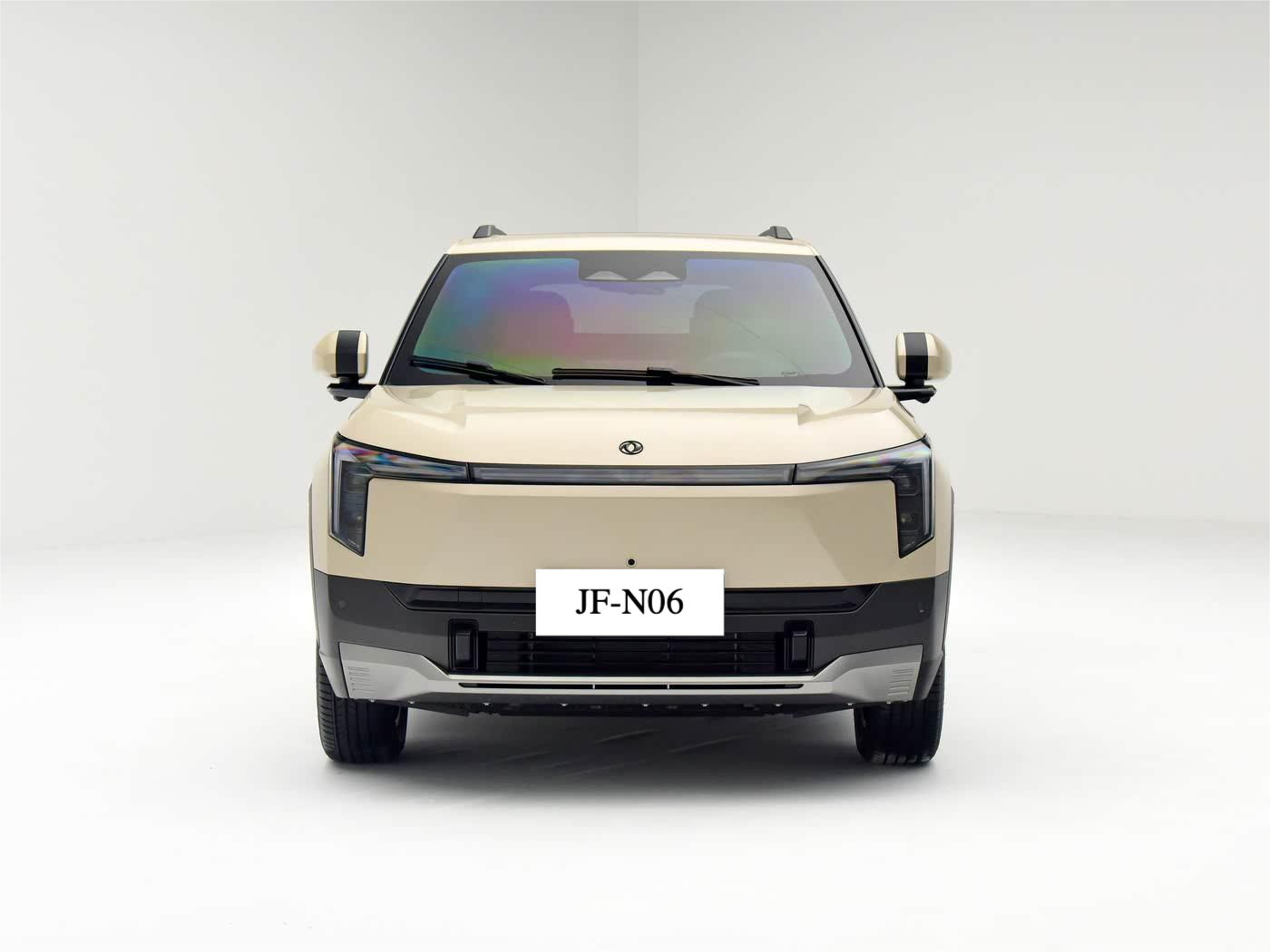

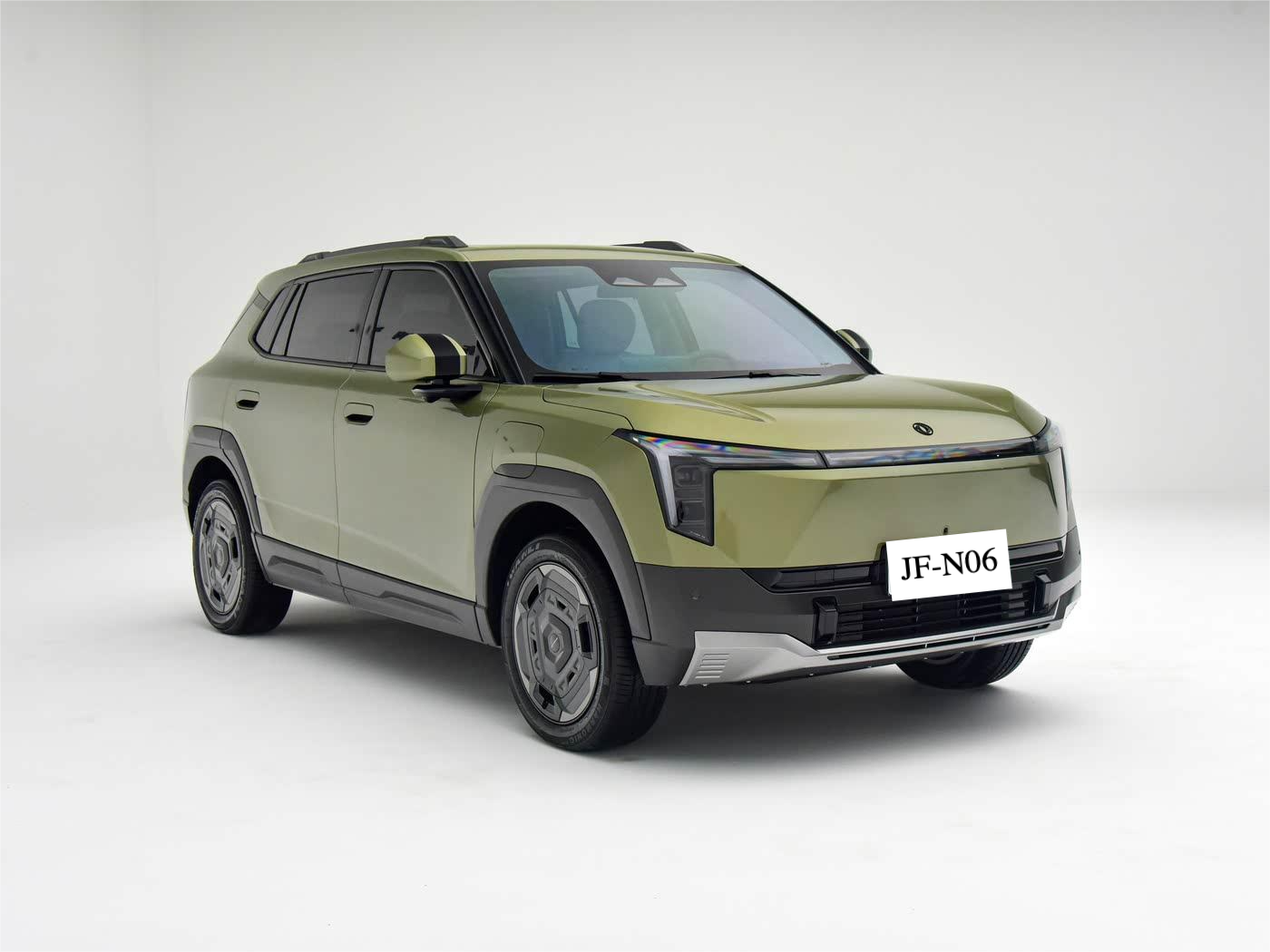

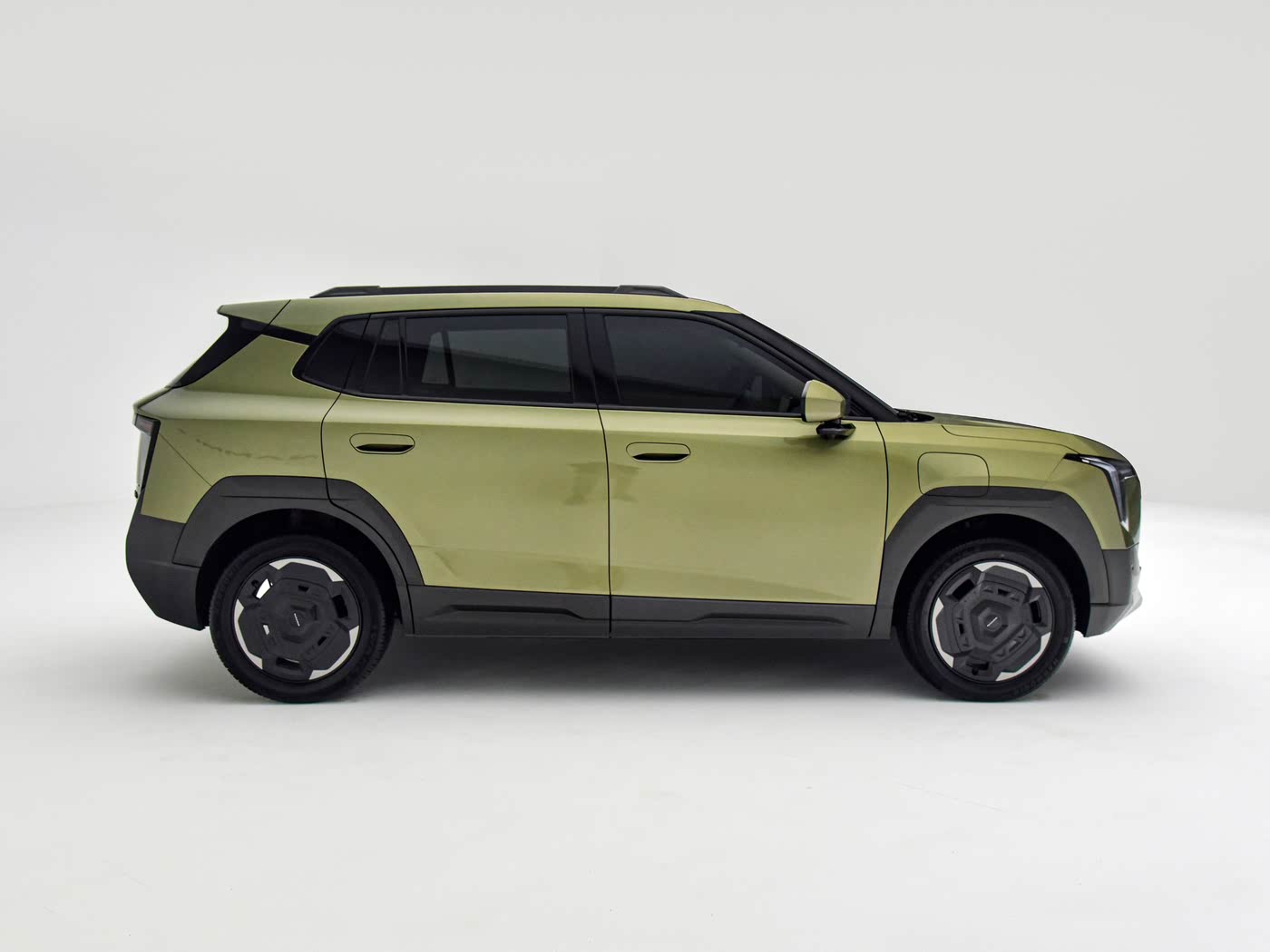

As a pure electric subcompact SUV, the JF-N06 applies the "Fun Magic Cube" design concept. With a square front face matched with a through-type headlight, it features neat lines and exudes a strong sense of futurism. There are five body colors available. The design of the contrasting-color rearview mirrors and the floating roof makes it both fashionable and eye-catching.
It has a length of 4306mm, a width of 1868mm, and a height of 1645mm. The extra-long wheelbase of 2715mm provides a spacious interior space. The trunk has a volume of up to 500L, and the rear seats can be folded down, offering flexibility and versatility. The front seats in the car can be reclined 180° and instantly transformed into a 1.8-meter camping bed. It is also equipped with the only "sky-earth door" in its class. The ground door can bear a weight of 150kg. After it is opened, it provides a broad view and makes it convenient to carry items.
Its power comes from the Maher E powertrain platform. The peak power of the motor is 135 kilowatts, and the maximum speed is 150km/h. It is equipped with lithium iron phosphate battery packs with capacities of 44.94 kWh and 51.87 kWh. The longest CLTC pure electric range can reach up to 471 kilometers. It also has the 3C super fast charging capability. Charging for 5 minutes can increase the range by 100 kilometers, and it only takes 18 minutes to charge the battery from 30% to 80%, easily meeting the needs of daily commuting and long-distance driving.
基本参数 Basic Parameters
长度(mm)
Length (mm)
4306
4306
4306
宽度(mm)
Width (mm)
1868
1868
1868
高度(mm)
Height (mm)
1645
1645
1645
轴距(mm)
Wheelbase (mm)
2715
2715
2715
前轮距(mm)
Front wheelbase (mm)
1578
1578
1578
后轮距(mm)
Rear wheelbase (mm)
1586
1586
1586
整备质量(kg)
Curb weight (kg)
1526
1526
1550
行李厢容积(L)
Luggage compartment capacity (L)
500
500
500
最高车速(km/h)
Maximum speed (km/h)
150
150
150
CLTC综合工况续航里程(km)
CLTC comprehensive operating range (km)
401
401
471
驱动电机类型
Drive motor type
永磁同步电机
Permanent magnet synchronous motor
永磁同步电机
Permanent magnet synchronous motor
永磁同步电机
Permanent magnet synchronous motor
最大功率(kW)
Maximum power (kW)
135
135
135
最大扭矩(N·m)
Maximum torque (N · m)
290
290
290
直流快充时间(30%-80%)
DC fast charging time (30% -80%)
30min
30min
18min
交流慢充时间
Communication slow charging time
8.3h
8.3h
9h
动力性能 Dynamism
驾驶模式
driving mode
经济/标准/运动
Economy/Standards/Sports
经济/标准/运动
Economy/Standards/Sports
经济/标准/运动
Economy/Standards/Sports
驱动电机类型
Drive motor type
永磁同步电机
Permanent magnet synchronous motor
永磁同步电机
Permanent magnet synchronous motor
永磁同步电机
Permanent magnet synchronous motor
驱动电机数
Number of driving motors
单电机 Single motor
单电机 Single motor
单电机 Single motor
电机布局
Motor layout
前置 Front
前置 Front
前置 Front
前电动机最大功率(kW)
Maximum power of front motor (kW)
135
135
135
前电动机最大扭矩(N.m)
Maximum torque of front motor (N.m)
290
290
290
0-50km/h加速时间(s)
0-50km/h acceleration time (s)
3.6
3.6
3.7
电池类型
Battery Type
磷酸铁锂 Lithium Iron Phosphate
磷酸铁锂 Lithium Iron Phosphate
磷酸铁锂 Lithium Iron Phosphate
电池容量(kWh)
Battery capacity (kWh)
44.94
44.94
51.87
百公里耗电量(kWh/100km)
Power consumption per 100 kilometers (kWh/100km)
12.4
12.4
12.6
电池预加热
Battery preheating
S
S
S
智焓宽温域高效热泵系统
Intelligent enthalpy wide temperature range efficient heat pump system
S
S
S
能量回收
energy recovery
S
S
S
对外放电(V2L)3.3kW
External discharge (V2L) 3.3kW
S
S
S
对外放电(V2V)3-6kW
External discharge (V2V) 3-6kW
S
S
S
底盘转向及制动 Chassis steering and braking
驱动方式
Drive mode
2WD
2WD
2WD
前悬架类型
Front suspension type
麦弗逊式独立悬架
McPherson independent suspension
麦弗逊式独立悬架
McPherson independent suspension
麦弗逊式独立悬架
McPherson independent suspension
后悬架类型
Rear suspension type
扭力梁式非独立悬架
Torsion beam non independent suspension
扭力梁式非独立悬架
Torsion beam non independent suspension
扭力梁式非独立悬架
Torsion beam non independent suspension
转向助力类型
Power steering type
电动助力 Electric power assist
电动助力 Electric power assist
电动助力 Electric power assist
电子怀挡
Electronic gear guard
S
S
S
皮质方向盘
Leather steering wheel
-
S
S
多功能方向盘
Multifunction steering wheel
S
S
S
方向盘位置手动调节(上下2向)
Manual adjustment of steering wheel position (up and down in 2 directions)
S
S
S
制动器类型
Brake Type
前盘/后盘 Front/Rear Disk
前盘/后盘 Front/Rear Disk
前盘/后盘 Front/Rear Disk
驻车制动类型
Parking brake type
电子驻车 Electronic parking
电子驻车 Electronic parking
电子驻车 Electronic parking
自动驻车Autohold
Automatic parking Autohold
S
S
S
轮胎规格
Tire Size
S(215/60 R17)
S(215/60 R17)
S(215/60 R17)
轮辋材质
Wheel rim material
钢轮 Steel Wheel
铝合金 aluminum alloy
铝合金 aluminum alloy
安全装备 Safety Equipment
前安全带
Front seat belt
限力式 Limited force type
限力式 Limited force type
限力式 Limited force type
后安全带
Rear seat belt
非限力式 Non limiting force type
非限力式 Non limiting force type
非限力式 Non limiting force type
司机侧安全带未系提醒
Reminder for driver's seat belt not fastened
S
S
S
副驾驶侧安全带未系提醒
Reminder that the passenger side seat belt is not fastened
-
S
S
儿童安全座椅接口(ISOFIX)
Child safety seat interface (ISOFIX)
S
S
S
前排安全气囊
Front airbags
S
S
S
前排侧安全气囊
Front side airbag
S
S
S
前/后排头部气囊(气帘)
Front/rear head airbags (air curtains)
-
S
S
间接式胎压监测
Indirect tire pressure monitoring
S
S
S
ABS防抱死
ABS anti lock braking system
S
S
S
制动力分配(EBD)
Braking Force Distribution (EBD)
S
S
S
上坡辅助(HAC)
Hill Assist (HAC)
S
S
S
车身稳定系统(ESC)
Vehicle Stability Control System (ESC)
S
S
S
刹车辅助(EBA)
Brake Assist (EBA)
S
S
S
牵引力控制(TCS)
Traction Control System (TCS)
S
S
S
